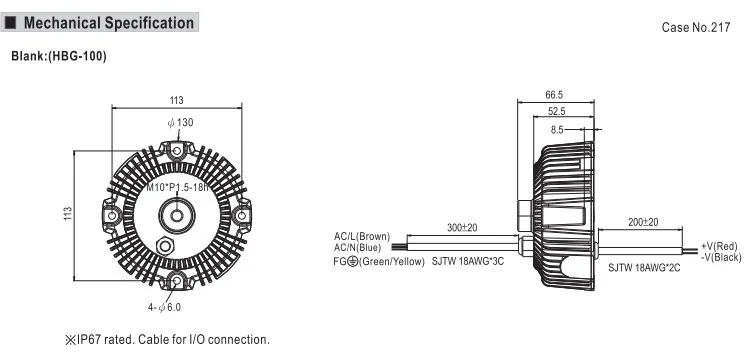

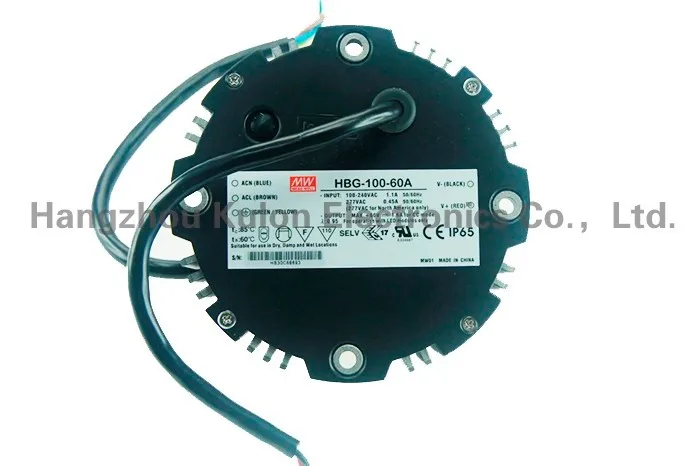

Meanwell circular shape design HBG 100w led driver 36 volt power supply



HBG Features:

1.Universal AC input / Full range (up to 295VAC)
2.Built-in active PFC function
3.Circular shape design:
4.High efficiency up to 93.5%
5.Protections: Short circuit / Over temperature
6.IP67/IP65 design for indoor or outdoor installations
7.Built-in 3 in 1 dimming function (1~10VDC, PWM signal, or resistance) for
8.Fully isolated plastic case
9.Suitable for LED high/low bay lighting, stage lighting
10.5 years warranty



HBG series are high performance LED power supplies specially designed for the high/low bay lighting and spot lighting applications. Featuring with circular shape, these series are easy to be assembled with the mechanical structure of high/low bay lighting fixtures. The enclosures can be perfectly configured with the heat sink of lighting fixtures and provide excellent heat dissipation ability, which solve the mechanism limits of old style bay lighting systems using slim shape LED power supplies. Mean well HBG switching power supply applications LED bay lighting, LED down lighting, LED spot lighting, LED mining lighting and LED stage lighting.

Meanwell is a leading standard switching power supply manufactures in the world, Kulon Electronics is the biggest agent in China. Once you’re found an enclosed type Mean well power supply, Kulon Electronics will placing your Mean well order easy. We have formed long-term associations with most of our customers, working together for many years, developing many treasured relationships. We are looking forward to your inquiry and working with you.

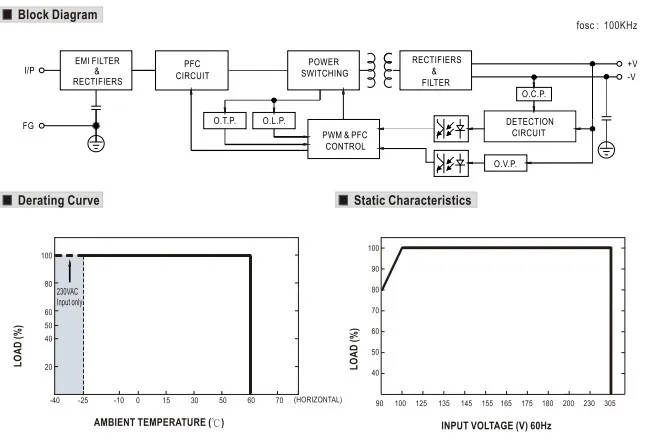

LED Driver Parameter

Model		HBG-100-24	HBG-100-36	HBG-100-48	HBG-100-60
Output	Rated Current	4A	2.7A	2A	1.6A
	Rated Power	96W	97.2W	96W	96W
	Constant Current Region	14.4~24V	21.6~36V	28.8~48V	36~60V
	Open Circuit Voltage(max)	25V	37V	49V	62V
	Current ADJ. Range	Adjustable for A-Type (via built-in potentiometer)
		2.4 ~ 4A	1.62 ~ 2.7A	1.2 ~ 2A	1.0 ~ 1.6A
	Current Ripple	5.0% max. @rated current
	Current Tolerance	±5.0%
	Set Up Time	2000ms / 115VAC 500ms / 230VAC

Input	Voltage Range	90 ~ 305VAC 127 ~ 431VDC
	Frequency Range	47 ~ 63Hz
	Power Factor	PF>0.96/115VAC, PF>0.96/230VAC, PF>0.94/277VAC full load
	Total Harmonic Distortion	THD< 20%(@load 60%/115VC,230VAC; @load 75%/277VAC)
	Efficiency (Typ)	90.5%	91%	91%	91.5%
	AC Current (Typ)	1.1A / 115VAC 0.5A / 230VAC 0.45A / 277VAC
	Inrush Current (Typ)	COLD START 60A(twidth=415 s measured at 50% Ipeak) at 230VACμ;Per NEMA 410
	Max No. of PSU on 16A Circuit Breaker	4 units (circuit breaker of type B) / 8 units (circuit breaker of type C) at 230VAC
	Leakage Current	<0.75mA / 277VAC

Protection	Over Current	95 ~ 108%
		Constant current limiting
	Over Voltage	28 ~ 35V	41 ~ 49V	54 ~ 63V	65 ~ 75V
		Shut down o/p voltage re-power on to recovery
	Over Temperature	Shut down o/p voltage re-power on to recovery

Environment	Working Temp.	40 ~ +85°C
	Max Case Temp	+85°C
	Working Humidity	20 ~ 95% RH non-condensing
	Storage Temp, Humidity	-40 ~ +80, 10 ~ 95% RH
	Temp Coefficient	±0.03%/°C(0 ~ 50°C)
	Vibration	10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

Safety & EMC	Safety Standards	UL8750, CSAC22.2 No. 250.13-12, ENEC EN61347-1 & EN61347-2-13 independent, EN62384, IP65 or IP67 approved
	Withstand Voltage	I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
	Isolation Resistance	I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25°C/ 70% RH
	EMC Emission	Compliance to EN55015, EN61000-3-2 Class C(@load≧60%);  EN61000-3-3
	EMC Immunity	Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547,light industry level (surge immunity:Line-Earth:4KV,Line-Line:2KV)
