7 years warranty 160 watt 120lm/w stadium ip66 ik10 led flood lights

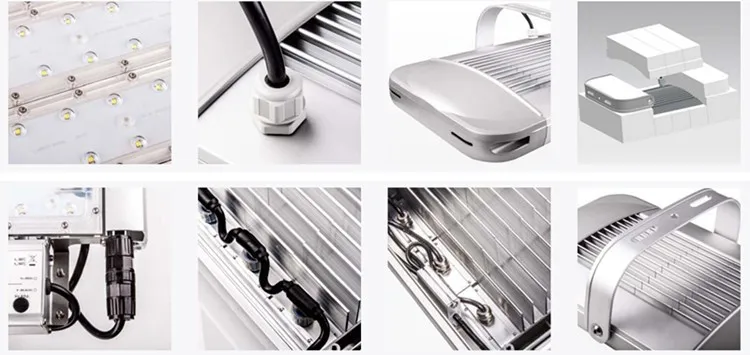

160w LED Flood Light Features:
1: Philips LUMILEDS LED Luminous Source
2: Mean Well LED Driver
3: Kulon 3rd Generation LED Module
4: Professional lens design with 60°, 90° and 110° optional.
5: use waterproof connector to fix the input cables, easy to make maintenance.
6: Utilize M16 waterproof connector to fix the input cable, avoid damage of hard power pulling
H4 LED Flood Light Advantage:
Kulon H4 series LED Flood Light: Equipped with exceptional Kulon 3rd generation LED module, the H4-Series LED Flood lights give best luminous output, stability and extra long life. H4-Series LED Floodlights are intended to build the most cost-performance luminaires ever.
Kulon: completed the R&D independently, and reserve all related patents for H4-Series LED Floodlights.Easy assemble/disassemble, neat wiring & connection, up to 150 LPW luminous efficiency, IP66 and IK10 Rated, 90%+ driver efficiency, over than 100,000 hours operation life and 7 years warranty.
Philipe LED Luminous Source:
The Kulon H4-Series LED Flood light is utilizing Philips Luxeon 3030 2D luminous source, providing excellent lumen output - up to 150 LPW, long-lasting stability and splendid sight.
Each Luxeon 3030 2D owns electrostatic protection component, maximally avoid the damage of electrostatic.160 watt led flood light，waterproof led flood light，outdoor led flood light

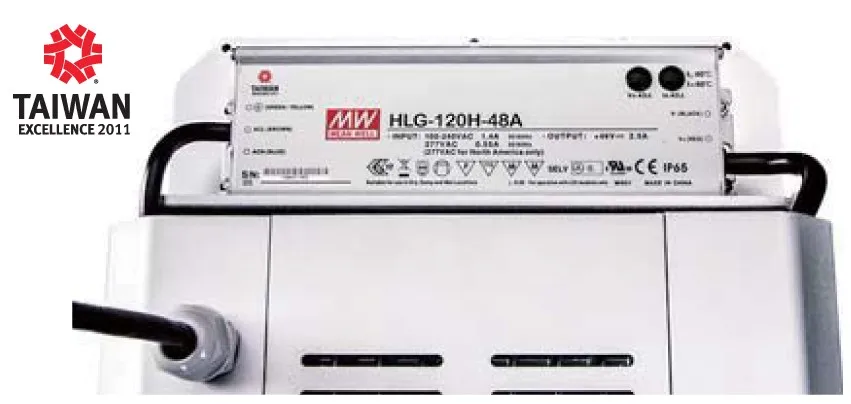

Mean Well LED Driver:
Full Range of Kulon H4-Series LED Flood light is utilizing MeanWell HLG series high-end driver, optimal operation stability, lifespan and performance.
1.Bulit-in active PFC function
2.No load power consumption<0.5w at remote OF
3.Fanless design, cooling by free air convection
4.IP67 / IP65 for indoor outdoor installations
5.Three in one dimming function: 0-10VDC / Resistance / PWM signal Time dimming also available
1.Bulit-in active PFC function
2.No load power consumption<0.5w at remote OF
3.Fanless design, cooling by free air convection
4.IP67 / IP65 for indoor outdoor installations
5.Three in one dimming function: 0-10VDC / Resistance / PWM signal Time dimming also available

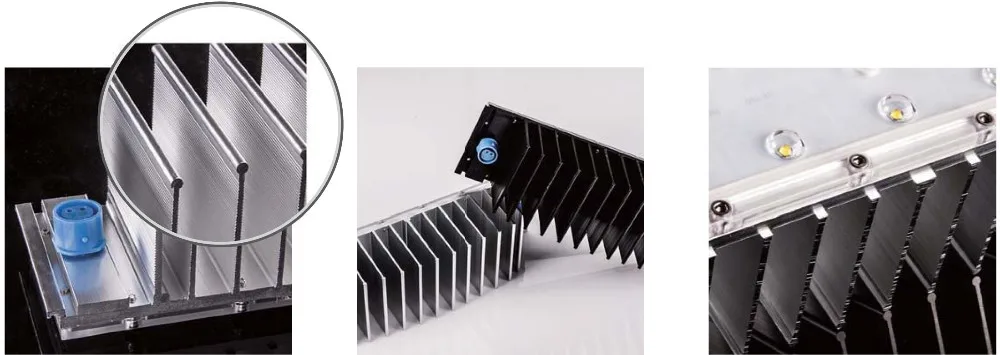

KULON 3rd Generation LED Module:Exquisite design with powerful thermal performance, as well as high reliable waterproof rating.
1.Cylindrical edge design, avoid risk of cuts.
2.Black&Silvery. 160 watt led flood light，waterproof led flood light，outdoor led flood light
3.Overall stainless steel hexagon screws adopted.
1.Cylindrical edge design, avoid risk of cuts.
2.Black&Silvery. 160 watt led flood light，waterproof led flood light，outdoor led flood light
3.Overall stainless steel hexagon screws adopted.
More details of LED Flood light:
1.Professional lens design with 60°, 90° and 110° optional.
2.Utilize M16 waterproof connector to fix the input cable, avoid damage of hard power pulling.
3.Convenient connection, neat, clean and efficiency.2.Utilize M16 waterproof connector to fix the input cable, avoid damage of hard power pulling.
4.Use waterproof connector to fix the input cables, easy to make maintenance.
5.Full aluminum enhanced luminaire bracket supports flexible angle adjustment. Design for a variety of applications. 160 watt led flood light，waterproof led flood light，outdoor led flood light
6:With a non-corrosive material, not only exquisite appearance, but also no corrosion concerns
LED Flood Light SPE
| Model Name | K-FL160WH4 |
| Nominal wattage | 160W |
| Nominal Voltage | AC 100-240V /277V, 50/60Hz DC |
| Maximum Current | AC 0.41A -120V, 0.21A -240V,0.81A -277V |
| Optimal Operating Temperature | -40 ºC to +50 ºC |
| led flood light Power Factor(PF) | > 0.9 |
| led flood light Driver Efficiency | > 90% |
| led flood light Lumen Output | 20800lm (+/- 5%) |
| Photometric Type | 60º | 90º | 110º |
| led flood light CRI | >70 CRI |
| led flood light CCT | 4000K,5000K,5700K |
| led flood light Rating | IP66,IK10 |
| led flood light Lumen Maintenance | > 60,000 hours -L₇₀(9K), @25 ºC (77 ºF) |
| led flood light Heat Radiator | Anodized Aluminum |
| led flood light Lens | PC |

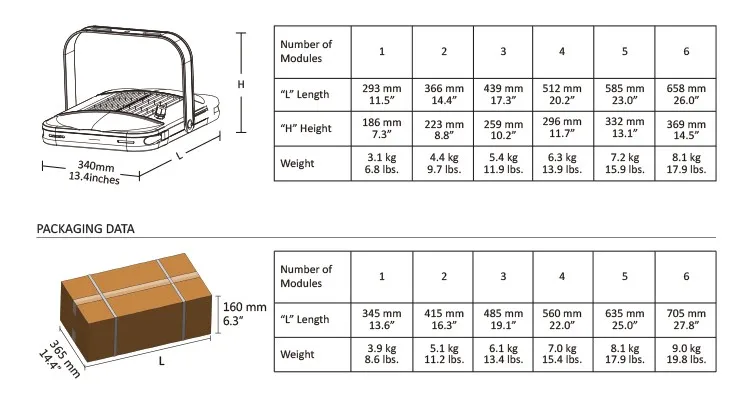

| led flood light Packing Dimension | 560 x365 x160 mm,22.0 x14.4 x6.3 inches |
| led flood light Packing Weight | 7.3 kg /15.4 lbs |
Certifications

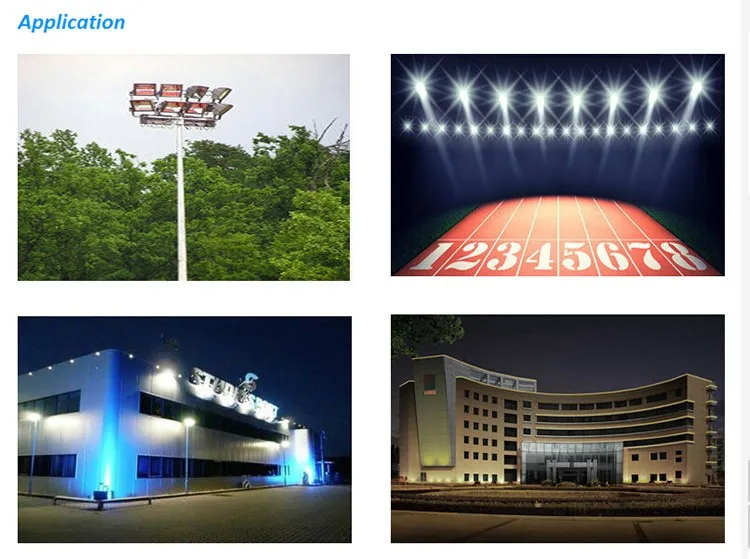

LED Flood Light APP
Applicaion:The KULON H4-Series LED Flood Light has its own widely used for Bill Board,Area lighting
Architecture Lighting,Landscape Lighting
Architecture Lighting,Landscape Lighting
LED Flood Light P&D

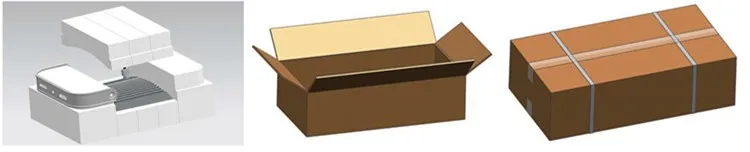

Parking:Package is customized according to customer's demands(Label design with customer's logo is available).Normally packing include: foam boxes + cutomized cartons + wooden pallet(use for sea shipment)
Delivery:Shipping will be the most economical according to customer demands. (By internation express, By Air, By Train, By sea all available) 160 watt led flood light，waterproof led flood light，outdoor led flood light
Also our production & lead time is guaranteed:
2-3 working days for sample order,
5-7 working days for regular, order(quantity< 200pcs),
10-15 working days for mass order(201-1000pcs),Also our production & lead time is guaranteed:
2-3 working days for sample order,
5-7 working days for regular, order(quantity< 200pcs),
order >1000pcs pls contact us to confirm.
