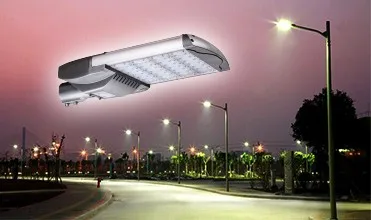

160w modular motion sensor Ce Rohs Tuv ip66 roadway led street lights
LED Street Light Features:
1.Professional lens design, suitable for various applications.
2.Luminaire body is fixed by two M8X16 fortified stainless steel screws.
3.Rational clamshell design for wiring compartment, sturdy and durable.
4.Use stainless steel screws for whole luminaire, no corrosion worries.
5.Use German WAGO®connectors for internal wiring, safe, convenient&fast.
2.Luminaire body is fixed by two M8X16 fortified stainless steel screws.
3.Rational clamshell design for wiring compartment, sturdy and durable.
4.Use stainless steel screws for whole luminaire, no corrosion worries.
5.Use German WAGO®connectors for internal wiring, safe, convenient&fast.
Kulon H4/H5 LED Street Light Advantages:
The KULON®H4/H5 series 160w led street lights are using LUMILEDS® LUXEON 3030 2D luminous source, providing excellent lumen output, long-lasting stability and splendid sight. And also have a high luminous efficiency and better service life, provide 7 years warranty on luminaire.
Philips LUEXON 3030 2D led luminous sources, which greater than 150lm/W high efficacy, illumination grade LED light source.
Kulon 160w led street light with professional lens design, suitable for various applications.
Flexible installation:Kulon new products H4/H5 led street light with innovative pole fitter design not only achieve the horizontal and vertical installation features, also has 0-15°adjustable function for each installation direction.
Street Light Optics
Kulon H4/H5 led street lights optics TypeI,Medium; Typell,Medium; Typelll, Medium; TypeV, Short, which is urban main roads, highway, parking lot, area and etc.
LED Street Light Spe
| Model | K-LD160WH4 |
| Nominal Wattage | 160W |
| LED Working Current | 110mA |
| Number of Module | 3 pcs |
| Input Voltage | 100-240V/277V AC 50/60Hz |
| Dimming | 0-5V, 0-10V, PWM, Timer |
| LED Brand | Philips Lumileds 3030 2D led chips |
| Driver Brand | Inventronics LED Driver |
| Max.Current@120V | 1.23A |
| Max.Current@208V | 0.71A |
| Max.Current@240V | 0.62A |
| Max.Current@277V | 0.53A |
| Operating Temperature | -40℃ +50℃ |
| Power Factor(PF) | >0.95 |
| THD | <20% |
| Lumen Output(+/-5%) | 20800lm |
| Luminaire Efficacy(+/-5%) | 130lm/W |
| Optics | TypeI,Medium; Typell,Medium; Typelll, Medium; TypeV, Short |
| CRI | >70 |
| CCT | 3000K(Warm White), 4000K(Nature White),5000K(Pure White), 5700K(Cool White) |
| Rating | IP66, IK10 |
| Material | Housing: Die-casting aluminum; Heat sink: Stretched Aluminum Alloy; Lens: PC |
| Installation | Horizontal and vertical installation for optional; Adjustable tilt angle 0-10-15° |
| Accessories(Optional) | Photocell; Surge protection(6KV/10KV);Adapter for 40/42mm pole mounting(Normal mountingØ60mm) |
| Shell Color | Silver(RAL9022) or Black(RAL9005), other RAL colors available on request |
| Lumen Maintenance | >75,000 hours-L70 at 25℃ |
| Certifications | CE, ROHS,IOS9001, ISO14001,LM80 |
| Packing Type | 1 units/ctn. |
| Dimension Data | 650 x316 x136 mm |
| Fixture Weight | 8.2 kg |
| Packing Data | 705 x370 x200 mm |
| Packing Weight | 9.6 kg |
Packing & Delivery
Packing:Package is customized according to customer's demands(Label design with customer's logo is available). Normally packing include: foam boxes + cutomized cartons + wooden pallet(use for sea shipment)
Delivery:Shipping will be the most economical according to customer demands. (By international express, By Air, By Train, By sea all available)
Also our production & lead time is guaranteed:
2-3 working days for sample order,
5-7 working days for regular, order(quantity< 200pcs),
10-15 working days for mass order(201-1000pcs), order >1000pcs pls contact us to confirm.
Also our production & lead time is guaranteed:
2-3 working days for sample order,
5-7 working days for regular, order(quantity< 200pcs),
10-15 working days for mass order(201-1000pcs), order >1000pcs pls contact us to confirm.
